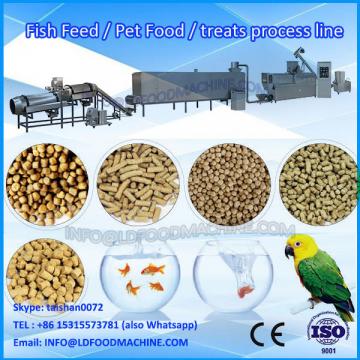

Continuous Automatic Floating fish feed machine production line

Continuous Automatic Floating fish feed machine production line

Product Description Product Application Continuous Automatic Floating fish feed machine production line are designed to process a wide range of recipes. Manufacturers...
  • US $30,000 - 150,000/ Set | Get Latest Price
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 10 Set/Sets per Month Continuous Automatic Floating fish feed machine production line
  • Shandong, China (Mainland)
  • LD
  • TUV,BV,CE
Product Groups

Allen

Mobile : 86-18660125156

Tel : 0531-85064681

Request a quote

Address:No.4087 SHAHEXI ROAD, TIAOQIAO DISTRICT,JINAN,CHINA

Product Details

Condition:New Place of Origin:Shandong, China (Mainland)
Brand Name:LD Model Number:ZH65,ZH70,ZH85,ZH95
Application:Fish, Continuous Automatic Floating fish feed machine production line Voltage:380v,50hz, three phases
Power(W):35kw Weight:1800kgs
Dimension(L*W*H):3000*800*2000mm Certification:TUV,BV,CE
Warranty:1 year After-sales Service Provided:Engineers available to service machinery overseas
machine material:stainless steel Main motor:Siemens
extruder screws material:38CrMoAl Layout:Auto CAD Format according to client"s workshop
whatsapp:+8618396880865 Recipe & formula:Provided free of charge
skype:Michelle Wang007 Machine type:Continuous Automatic Floating fish feed machine production line
Installing time:15days

Product Description

Product Description

Product Application

Continuous Automatic Floating fish feed machine production line are designed to process a wide range of recipes.
Manufacturers can produce any number of textures, shapes, sizes, flavors and colors.
Our goal is to provide flexible and scalable production tools to produce high-quality, tasty and nutritional pet foods and fish feed.

Capacity 120-150kg/h, 250kg/h, 300-500kg/h, 800-1000kg/h, 2-5t/h.
Power Supply Based on 380V 50 Hz 3 phase.
Customized according to your local power.
Machine details 1.Stainless steel,:201, 304, 316, on request
2. Electric parts can be ABB, Delta, Fuji, Omron, Siemens; Famous brand as your demand.
Certificate CE,GOST,TUV,BV
Raw Material Corn meal, flour, soy meal, peanut meal.
Bone /meat/fish/shrimp powder, etc.
Product type dog food, cat food, livestock feed;
floating fish feed & sinking fish feed
Product shape Pet food: Pellet
Fish feed: Granule, Pellet, stick, tablet
Product size According to your capacity. The size is smaller, the capacity is less, the size is bigger, the capacity is more.

Advantages
1.We specialize in high capacity extruder which can reach 5000kg/h
2.The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.
a)With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.
3.SIMENS (China) Motor
4.It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
a)Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the Continuous Automatic Floating fish feed machine production line.
5.Adopted the Delta inverters, ensure the extruder better running.
6.The gearbox has automatic lubrication function, which prolong service life of gears.
7.Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.

Technical Parameters
Model Installed power Real power Capacity
ZH65 35 KW 22kw 120-150kg/h
ZH70 50kw 37kw 200-250kg/h
ZH85 110kw 75kw 300-500kg/h
ZH95 151kw 110kw 1-1.2 ton/h
ZH135 425kw 335kw 3-5ton/h
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications

Business established more than 10 years ago, is considered as one of Chinese most respected and experienced suppliers of Continuous Automatic Floating fish feed machine production line, accessories and services.We also received a number of certification.

Packing & Delivery

Packing: Continuous Automatic Floating fish feed machine production line are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery.
We take good care of each machine for you

Delivery: 20-30 days after receiving advance payment.

Contact

If any request on our Continuous Automatic Floating fish feed machine production line, please feel free to contect me.
Phone/Whatsapp/Wechat/Imo: +8618396880865
Skype: Michelle Wang007
Facebook: Jun Wang
